OrangeHRM provides a HRIS experience and offers HR Administration.
OrangeHRM provides a HRIS experience and offers HR Administration.
This project aims to demonstrate my skills in Automation with Cypress using JavaScript as programming language Test Driven Development. Therefore, it is for demonstration purposes. The OrangeHRM website belongs to Orange HRM which is a open source HRMS.
It should be noted that not all the website functionalities were automated, the approach followed was to write test cases at a high level that offered the main functionalities of the application, in their case: login, add/edit/delete users, employees and vacancies and create/like posts.
The test cases were translated into low level to detail step by step the execution of the test cases. These test cases are grouped by test scenarios, ID, positive/negative, the type of test case (functional) and whether it is automatable or not. Only functional test cases have been considered, therefore performance, usability and any non-functional test cases are out of scope.

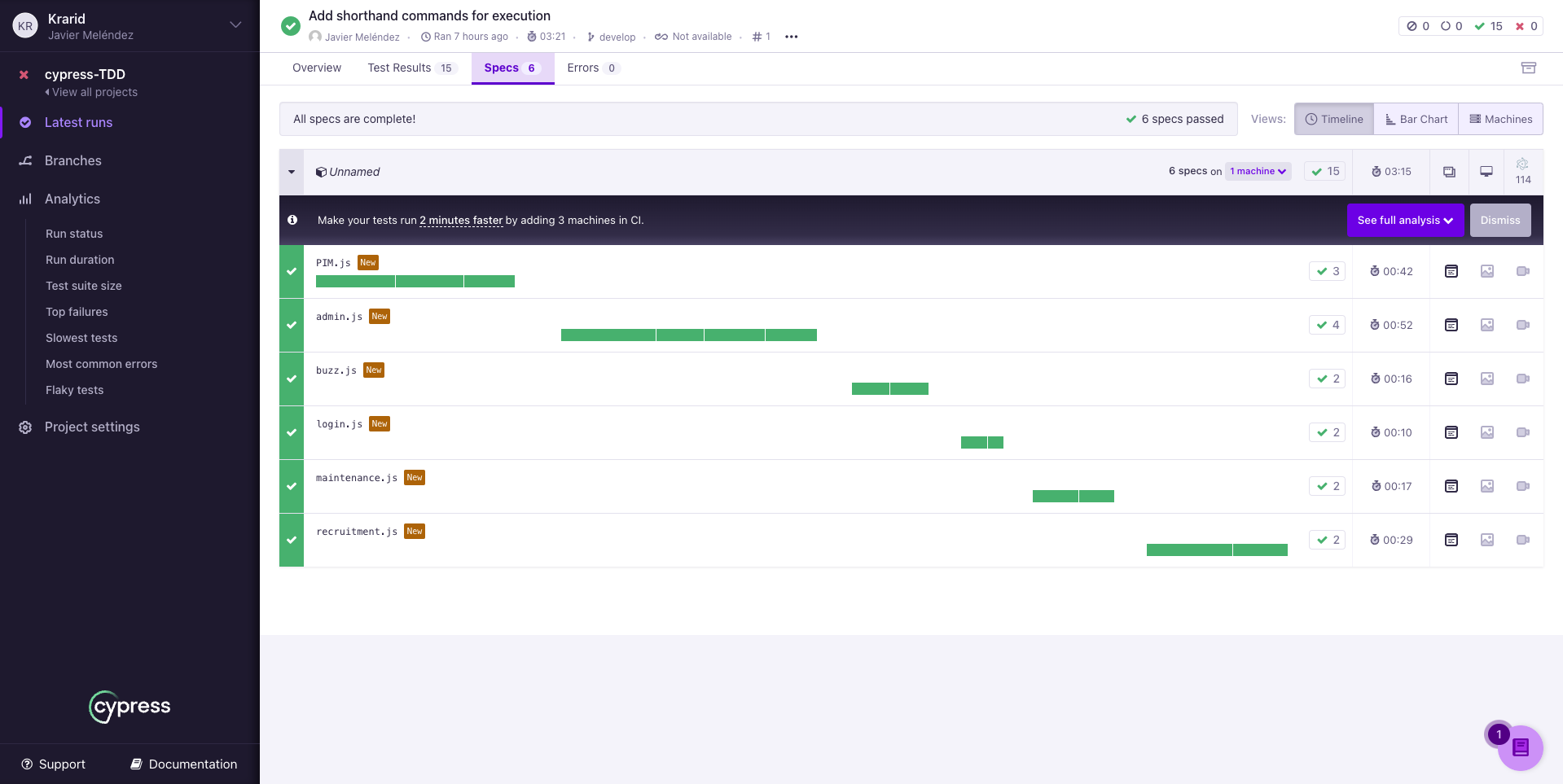

The execution of the test cases and the results are shown in later sections. Finally, Jenkins is integrated for continuous integration and continuous deployment.
| ID | Test scenario | Test case | Positive / Negative | Type | Automatable |
|---|---|---|---|---|---|
| HRM-1 | Login | Login with correct credentials | Yes | Functional | Yes |
| HRM-2 | Login with incorrect credentials | No | Functional | Yes | |
| HRM-3 | Search | Add a user to the system | Yes | Functional | Yes |
| HRM-4 | Add a user to the system with existing username | No | Functional | Yes | |
| HRM-5 | Add a job | Yes | Functional | Yes | |
| HRM-6 | Delete a job | Yes | Functional | Yes | |
| HRM-7 | PIM | Add an employee | Yes | Functional | Yes |
| HRM-8 | Edit an employee | Yes | Functional | Yes | |
| HRM-9 | Delete an employee | Yes | Functional | Yes | |
| HRM-10 | Recruitment | Add a vacancy | Yes | Functional | Yes |
| HRM-11 | Delete a vacancy | Yes | Functional | Yes | |
| HRM-12 | Maintenance | Access to maintenance mode | Yes | Functional | Yes |
| HRM-13 | Access to maintenance mode with incorrect credentials | No | Functional | Yes | |
| HRM-14 | Buzz | Create a post | Yes | Functional | Yes |
| HRM-15 | Like a post | Yes | Functional | Yes |
| ID | Test case | Test Data | Precondition | Steps | Expected Result |
|---|---|---|---|---|---|
| HRM-1 | Login with correct credentials | User should have accessed to OrangeHRM website | Visit https://opensource-demo.orangehrmlive.com/ | User is redirected to OrangeHRM website | |
| 1.1 | Admin | Enter {Test Data} as the username | Username field gets filled | ||
| 1.2 | admin123 | Enter {Test Data} as the password | Password field gets filled | ||
| 1.3 | Click on Login | User gets logged in | |||
| HRM-2 | Login with incorrect credentials | User should have accessed to OrangeHRM website | Visit https://opensource-demo.orangehrmlive.com/ | User is redirected to OrangeHRM website | |
| 2.1 | Test | Enter {Test Data} as the username | Username field gets filled | ||
| 2.2 | test123 | Enter {Test Data} as the password | Password field gets filled | ||
| 2.3 | Click on Login | An error message gets displayed | |||
| HRM-3 | Add a user to the system | User should have accessed to OrangeHRM website | Visit https://opensource-demo.orangehrmlive.com/ | User is redirected to OrangeHRM website | |
| 3.1 | User should have logged in with correct credentials | Click on "Admin" from left sidepanel | Admin page gets opened | ||
| 3.2 | Click on "+ Add" button | Add User page gets opened | |||
| 3.3 | 1. Admin 2. Ess |
Select {Test Data} as User Role | User role gets selected | ||
| 3.4 | 1. Enabled 2. Disabled |
Select {Test Data} as Status | Status gets selected | ||
| 3.5 | 1. Linda Jane Anderson Odis Adalwin |
Type {Test Data} as Employee Name | Employee name field gets filled | ||
| 3.6 | Test123 | Type {Test Data} as Username | Username field gets filled | ||
| 3.7 | Test123@QA$ | Type {Test Data} as Password | Password field gets filled | ||
| 3.8 | Click on "Save" button | A success message gets displayed | |||
| 3.9 | Search the recently added user | The recently added user was added in the system | |||
| HRM-4 | Add a user to the system with existing username | User should have accessed to OrangeHRM website | Visit https://opensource-demo.orangehrmlive.com/ | User is redirected to OrangeHRM website | |
| 4.1 | User should have logged in with correct credentials | Click on "Admin" from left sidepanel | Admin page gets opened | ||
| 4.2 | Click on "+ Add" button | Add User page gets opened | |||
| 4.3 | 1. Admin 2. Ess |
Select {Test Data} as User Role | User role gets selected | ||
| 4.4 | 1. Enabled 2. Disabled |
Select {Test Data} as Status | Status gets selected | ||
| 4.5 | 1. Linda Jane Anderson Odis Adalwin |
Type {Test Data} as Employee Name | Employee name field gets filled | ||
| 4.6 | Test123 | Type {Test Data} as Username | Username field gets filled | ||
| 4.7 | Test123@QA$ | Type {Test Data} as Password | Password field gets filled | ||
| 4.8 | Click on "Save" button | An error message below the Username field gets displayed | |||
| HRM-5 | Add a job | User should have accessed to OrangeHRM website | Visit https://opensource-demo.orangehrmlive.com/ | User is redirected to OrangeHRM website | |
| 5.1 | User should have logged in with correct credentials | Click on "Admin" from left sidepanel | Admin page gets opened | ||
| 5.2 | Click on "Job" in top bar menu | A context menu gets displayed | |||
| 5.3 | 1. Admin 2. Ess |
Click on "Job Title" in the context menu | Job Titles page gets displayed | ||
| 5.4 | 1. Enabled 2. Disabled |
Click on "+ Add" button | Add Job Title page gets displayed | ||
| 5.5 | QA Automation Engineer | Enter {Test Data} as Job Title | Job Title field gets filled | ||
| 5.6 | Description | Enter {Test Data} as Job Description | Job Description field gets filled | ||
| 5.7 | Test123@QA$ | Click on Save button | A success message gets displayed | ||
| 5.8 | Search the recently added job title | The recently added job title was added in the system | |||
| HRM-6 | Delete a job | User should have accessed to OrangeHRM website | Visit https://opensource-demo.orangehrmlive.com/ | User is redirected to OrangeHRM website | |
| 6.1 | User should have logged in with correct credentials | Click on "Admin" from left sidepanel | Admin page gets opened | ||
| 6.2 | Click on "Job" in top bar menu | A context menu gets displayed | |||
| 6.3 | Click on "Job Title" in the context menu | Job Titles page gets displayed | |||
| 6.4 | QA Automation Engineer | Search {Test Data} job title and click on trash button | A pop up is displayed | ||
| 6.5 | Click on "Yes, Delete" button | A success message gets displayed | |||
| 6.6 | QA Automation Engineer | Search {Test Data} job title and validate it should not appear | The deleted job title doesn't appear | ||
| HRM-7 | Add an employe | User should have accessed to OrangeHRM website | Visit https://opensource-demo.orangehrmlive.com/ | User is redirected to OrangeHRM website | |
| 7.1 | User should have logged in with correct credentials | Click on "PIM" from left sidepanel | PIM page gets opened | ||
| 7.2 | Click on "Add Employee" in top bar menu | Add Employee page gets displayed | |||
| 7.3 | Enter {Test Data} as First Name | First Name field gets filled | |||
| 7.4 | Enter {Test Data} as Last Name | Last Name field gets filled | |||
| 7.5 | Click on "Save" button | A success message gets displayed and user is redirected to the employee page | |||
| HRM-8 | Edit an employee | User should have accessed to OrangeHRM website | Visit https://opensource-demo.orangehrmlive.com/ | User is redirected to OrangeHRM website | |
| 8.1 | User should have logged in with correct credentials | Click on "PIM" from left sidepanel | PIM page gets opened | ||
| 8.2 | Click on "Employee List" in top bar menu | Employee List page gets displayed | |||
| 8.3 | Automation Engineer | Type {Test Data} in the Employee Name field | Employee name field gets filled | ||
| 8.4 | Green Blue |
Click on "Search" button | The Employee gets listed | ||
| 8.5 | 1 20 |
Click on pencil icon in the employee row | User is redirected to the employee page | ||
| 8.6 | Python | Change the employee first name to {Test Data} | First Name field gets filled | ||
| 8.7 | Developer | Change the employee last name to {Test Data} | Last Name field gets filled | ||
| 8.8 | Click on "Save" button | A success message gets displayed and user is redirected to the employee page | |||
| 8.9 | Click on "Employee List" in top bar menu | Employee List page gets displayed | |||
| 8.10 | Python Developer | Type {Test Data} in the Employee Name field | Employee name field gets filled | ||
| 8.11 | Click on "Search" button | The Employee gets listed | |||
| HRM-9 | Delete an employee | User should have accessed to OrangeHRM website | Visit https://opensource-demo.orangehrmlive.com/ | User is redirected to OrangeHRM website | |
| 9.1 | User should have logged in with correct credentials | Click on "PIM" from left sidepanel | PIM page gets opened | ||
| 9.2 | Click on "Employee List" in top bar menu | Employee List page gets displayed | |||
| 9.3 | Python Developer | Type {Test Data} in the Employee Name field | Employee name field gets filled | ||
| 9.4 | Click on "Search" button | The Employee gets listed | |||
| 9.5 | Click on trash icon in the employee row | A pop up is displayed | |||
| 9.6 | Click on "Yes, Delete" button | A success message gets displayed | |||
| 9.7 | Python Developer | Search {Test Data} in the employee name and validate it should not appear | The employee name doesn't appear | ||
| HRM-10 | Add a vacancy | User should have accessed to OrangeHRM website | Visit https://opensource-demo.orangehrmlive.com/ | User is redirected to OrangeHRM website | |
| 10.1 | Click on "Recruitment" from left sidepanel | Recruitment page gets opened | |||
| 10.2 | Click on "Vacancies" in top bar menu | Vacancies page gets displayed | |||
| 10.3 | Click on "+ Add" button | Add Vacancy page gets displayed | |||
| 10.4 | Automation Engineer | Enter {Test Data} as Vacancy Name | Vacancy Name field gets filled | ||
| 10.5 | QA Engineer | Select {Test Data} as Job Title | Job Title gets filled | ||
| 10.6 | Linda Jane Anderson | Type {Test Data} as Hiring Manager | Hiring Manager field gets filled | ||
| 10.7 | Click on "Save" button | A success message gets displayed | |||
| HRM-11 | Delete a vacancy | User should have accessed to OrangeHRM website | Visit https://opensource-demo.orangehrmlive.com/ | User is redirected to OrangeHRM website | |
| 11.1 | User should have logged in with correct credentials | Click on "Recruitment" from left sidepanel | Recruitment page gets opened | ||
| 11.2 | Click on "Vacancies" in top bar menu | Vacancies page gets displayed | |||
| 11.3 | QA Engineer | Select {Test Data} as Job Title | Job Title field gets selected | ||
| 11.4 | Automation Engineer | Select {Test Data} as Vacancy | Vacancy field gets selected | ||
| 11.5 | Click on "Search" button | The vacancy gets listed | |||
| 11.6 | Click on trash icon in the vacancy row | A pop up is displayed | |||
| 11.7 | Click on "Yes, Delete" button | A success message gets displayed | |||
| HRM-12 | Access to maintenance mode | User should have accessed to OrangeHRM website | Visit https://opensource-demo.orangehrmlive.com/ | User is redirected to OrangeHRM website | |
| 12.1 | User should have logged in with correct credentials | Click on "Maintenance" from left sidepanel | Maintenance login page gets opened | ||
| 12.2 | admin123 | Enter {Test Data} as the password | Password field gets filled | ||
| 12.3 | Click on "Confirm" button | User is redirected to maintenance mode page | |||
| HRM-13 | Access to maintenance mode with incorrect credentials | User should have accessed to OrangeHRM website | Visit https://opensource-demo.orangehrmlive.com/ | User is redirected to OrangeHRM website | |
| 13.1 | Click on "Maintenance" from left sidepanel | Maintenance login page gets opened | |||
| 13.2 | test123 | Enter {Test Data} as the password | Password field gets filled | ||
| 13.3 | Click on "Confirm" button | An error message gets displayed | |||
| HRM-14 | Create a post | User should have accessed to OrangeHRM website | Visit https://opensource-demo.orangehrmlive.com/ | User is redirected to OrangeHRM website | |
| 14.1 | User should have logged in with correct credentials | Click on "Buzz" from left sidepanel | Buzz login page gets opened | ||
| 14.2 | Hello World! | Type {Test Data} in the post field | Post field gets filled | ||
| 14.3 | Password123 | Click on "Post" button | A success message gets displayed | ||
| 14.4 | Validate the newest post has been added | The newest post has been added | |||
| HRM-15 | Like a post | User should have accessed to OrangeHRM website | Visit https://opensource-demo.orangehrmlive.com/ | User is redirected to OrangeHRM website | |
| 15.1 | User should have logged in with correct credentials | Click on "Buzz" from left sidepanel | Buzz login page gets opened | ||
| 15.2 | Hello World! | Search the newest post and click on heart icon | The number of likes gets incremented |
JavaScript
Cypress
Mocha
Chai
Cypress Cloud
Test Driven Development
