Test Strategy

Test Strategy

This project aims to demonstrate my skills in Automation with Appium using Java as programming language. Therefore, it is for demonstration purposes. The MyDemoApp belongs to the author of Sauce Labs which is an American cloud-hosted, web and mobile application automated testing platform company.

It should be noted that not all the app functionalities were automated, the approach followed was to write test cases at a high level that offered the main functionalities of the application, in their case: add products to cart, buy products, login and drawing.

The test cases were translated into low level to detail step by step the execution of the test cases. These test cases are grouped by test scenarios, ID, positive/negative, the type of test case (functional) and whether it is automatable or not. Only functional test cases have been considered, therefore performance, usability and any non-functional test cases are out of scope.

The programming language, automation framework, and document object model have been chosen for maintainability purposes and will be described below. The execution of the test cases and the results are shown in later sections. Finally, Jenkins is integrated for continuous integration and continuous deployment.

  • Author: Javier Meléndez Zacarías
  • Website author: Sauce Labs
  • Date: 1/28/2024
  • URL: My Demo App
  • JIRA: None
  • Epic: None
  • User Story: None
  • Test cases: 25

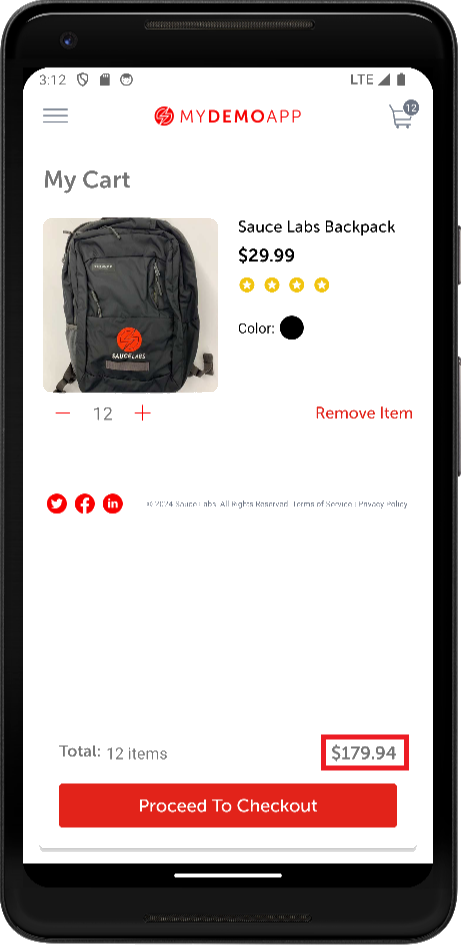

  • Defects: 1
  • Automation: Appium
  • Language: Java
  • Framework: Test Driven Development
  • Framework language: Espresso
  • Automation model: Page Object Model

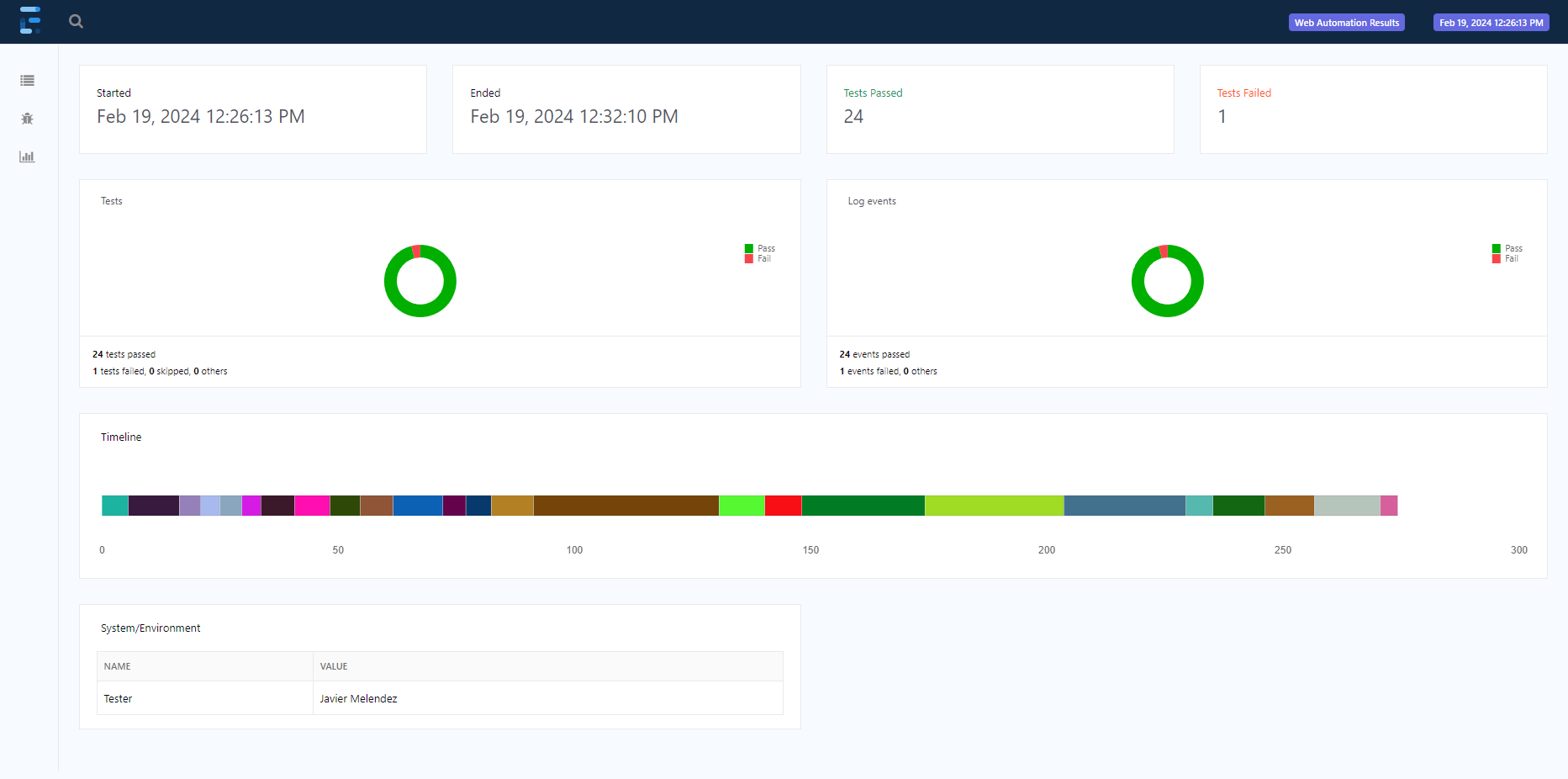

  • Passing score: 96%

Test cases

Test Cases

High level

ID Test scenario Test case Positive / Negative Type Automatable
MDA-1 Catalog Buy a product Yes Functional Yes
MDA-2 Remove an item Yes Functional Yes
MDA-3 Increase the cart Yes Functional Yes
MDA-4 Decrease the cart Yes Functional Yes
MDA-5 Add to cart many times Yes Functional Yes
MDA-6 Submit a review Yes Functional Yes
MDA-7 Sort products by Yes Functional Yes
MDA-8 Webview Go to an external site within the app Yes Functional Yes
MDA-9 Verify error message when providing an incorrect https url No Functional Yes
MDA-10 Drawing Perform drawing action Yes Functional Yes
MDA-11 Clear a drawing No Functional Yes
MDA-12 Save the drawing Yes Functional Yes
MDA-13 About Verify the last build Yes Functional Yes
MDA-14 Go to the sauce labs website external link Yes Functional Yes
MDA-15 Reset App State Reset app state Yes Functional Yes
MDA-16 Cancel the reset of the app state Yes Functional Yes
MDA-17 Login Login with a valid account Yes Functional Yes
MDA-18 Login with a locked out account Yes Functional Yes
MDA-19 Verify error message when username is not provided No Functional Yes
MDA-20 Verify error message when password is not provided No Functional Yes
MDA-21 Log out Yes Functional Yes
MDA-22 API calls Verify list of devices in EU-DC Yes Functional Yes
MDA-23 Verify list of devices in US-DC Yes Functional Yes
MDA-24 Verify list of devices in US-DC Yes Functional Yes
MDA-25 Verify 401 unauthorized error response No Functional Yes
MDA-26 Verify 404 not found error response No Functional Yes

Low level

ID Test case Test Data Precondition Steps Expected Result
MDA-1 Buy a product User should have accessed to MyDemoApp Launch MyDemoApp User is redirected to the catalog page
1.01 1. Onesie
2. Backpack 		Click on {Product} User is redirected to the product page
1.02 1. Black
2. Blue		 Click on a {Color} Color is chosen
1.03 3
5		 Select {Quantity} as the number of products Number of products has been chosen
1.04 Click on cart icon at the upper right Cart page gets opened
1.05 Click on "Proceed to checkout" button User is redirected to the checkout page
1.06 If neccesary, login User is redirected to the checkout page
1.07 Full Name: Rebecca Winter
Address Line 1: Mandorley 112
City: Truro
State: Cornwall
Zip Code: 89750
Country: United Kingdom		 Fill the shipping details and click on "to payment" button User is redirected to checkout page
1.08 Full Name: Rebecca Winter
Card Number: 325812657568789
Expiration Date: 03/25
Security Code: 123		 Fill the checkout details and click on review order User is redirected to the review page
1.09 Verify the name of the product, the color, the number of items and the total price All the verifications get passed
1.10 Click on "Place Order" User is redirected to the checkout complete page
1.11 Click on "Continue Shopping" button Verify user is redirected to the catalog page
MDA-2 Remove an item User should have accessed to MyDemoApp Launch MyDemoApp User is redirected to the catalog page
2.01 1. Bolt
2. Bike 		Click on {Product} User is redirected to the product page
2.02 1. Black
2. Black		 Click on a {Color} Color is chosen
2.03 2
4		 Select {Quantity} as the number of products Number of products has been chosen
2.04 Click on cart icon at the upper right Cart page gets opened
2.05 Click on "Remove Item" User is redirected to the no items page
MDA-3 Increase the cart User should have accessed to MyDemoApp Launch MyDemoApp User is redirected to the catalog page
3.01 1. allTheThings
2. Fleece 		Click on {Product} User is redirected to the product page
3.02 1. Black
2. Black		 Click on a {Color} Color is chosen
3.03 3
10		 Select {Quantity} as the number of products Number of products has been chosen
3.04 Click on cart icon at the upper right Cart page gets opened
3.05 Increase the number of items by {Quantity} for the product and verify the total price gets incremented The total price gets incremented
MDA-4 Decrease the cart User should have accessed to MyDemoApp Launch MyDemoApp User is redirected to the catalog page
4.01 1. allTheThings
2. Fleece 		Click on {Product} User is redirected to the product page
4.02 1. Black
2. Black		 Click on a {Color} Color is chosen
4.03 3
10		 Select {Quantity} as the number of products Number of products has been chosen
4.04 Click on cart icon at the upper right Cart page gets opened
4.05 Decrease the number of items by {Quantity} for the product and verify the total price gets incremented The total price gets decreased
MDA-5 Add to cart many times User should have accessed to MyDemoApp Launch MyDemoApp User is redirected to the catalog page
5.01 1. Sauce Labs Bolt T-Shirt
2. Sauce Labs Bike Light 		Click on {Product} User is redirected to the product page
5.02 2
3		 Select {Quantity} as the number of products Number of products has been chosen
5.03 3
3		 Click on Add To Cart {Times} number of times The items are added to the cart
5.04 Click on cart icon at the upper right Cart page gets opened
5.05 Increase or decrease the number of items in the product and check that the total price increases or decreases based on the total number of items multiplied by the individual item price The total price is based on the total number of items multiplied by the price of each item
MDA-6 Submit a review User should have accessed to MyDemoApp Launch MyDemoApp User is redirected to the catalog page
6.1 1. Sauce Labs Backpack
2. Sauce Labs Bike Light
3. Sauce Labs Bolt T-Shirt
4. Sauce Labs Fleece Jacket
5. Sauce Labs Onesie
6. Test.allTheThings() T-Shirt		 Click on {Product} User is redirected to the product page
6.2 Click on Close Modal button Close modal button gets closed
6.3 2 stars
3 stars
4 stars
5 stars
2 stars
4 stars		 Click on {Star} below the image product in order to submit a review Submitting modal gets opened
MDA-7 Sort products by User should have accessed to MyDemoApp Launch MyDemoApp User is redirected to the catalog page
7.1 Click on sorting icon at the top right Sort by pop modal gets opened
7.2 1. Name - Ascending
2. Name - Descending
3. Price - Ascending
4. Price - Descending		 Click on sort by {Sorting} and verify the products get sorted by {Sorting} order The products get sorted by selected order
MDA-8 Go to an external site within the app User should have accessed to MyDemoApp Launch MyDemoApp User is redirected to the catalog page
8.1 Click on hamburger icon at the top left Menu gets opened
8.2 Click on "Webview" User is redirected to the webview page
8.3 https://www.javimele.com Enter {Domain} as the domain name User is redirected to the website
8.4 Click on "Go to site" button User is redirected to the webview page
8.5 Javier Melendez Zacarias Scroll down in the website and verify the footer says {Footer} User is redirected to the footer of the website
MDA-9 Verify error message when providing an incorrect https url User should have accessed to MyDemoApp Launch MyDemoApp User is redirected to the catalog page
9.1 Click on hamburger icon at the top left Menu gets opened
9.2 Click on "Webview" User is redirected to the webview page
9.3 Error Enter {Domain} as the domain name URL field gets filled
9.4 Green
Blue		 Verify error message below the URL field Error message says "Please provide a correct https url"
9.5 1
20		 Type {Test Data} as quantity The desired quantity is selected
9.6 Click on cart icon and verity the subtotal The subtotal is the multiplication of the quantity of items and the price of it
MDA-10 Perform drawing action User should have accessed to MyDemoApp Launch MyDemoApp User is redirected to the catalog page
10.1 Click on hamburger icon at the top left Menu gets opened
10.2 Click on "Drawing" User is redirected to the drawing page
10.3 Make a drawing User made a drawing
MDA-11 Clear drawing User should have accessed to MyDemoApp Launch MyDemoApp User is redirected to the catalog page
11.1 Click on hamburger icon at the top left Menu gets opened
11.2 Click on "Drawing" User is redirected to the drawing page
11.3 Make a drawing User made a drawing
11.4 Click on "Clear" The drawing was cleaned
MDA-12 Save the drawing User should have accessed to MyDemoApp Launch MyDemoApp User is redirected to the catalog page
12.1 Click on hamburger icon at the top left Menu gets opened
12.2 Click on "Drawing" User is redirected to the drawing page
12.3 Make a drawing User made a drawing
12.4 Click on "Save" Save drawing modal gets opened
12.5 Click on "OK" on the recently opened modal Modal gets closed
12.6 Verify the image got saved in the gallery The image got saved in the gallery
MDA-13 Verify the last build User should have accessed to MyDemoApp Launch MyDemoApp User is redirected to the catalog page
13.1 Click on hamburger icon at the top left Menu gets opened
13.2 Click on "About" User is redirected to the about page
13.3 V.1.3.0-build 244 Verify the last build is {Build} The last build is as per test data
MDA-14 Go to the sauce labs website external link User should have accessed to MyDemoApp Launch MyDemoApp User is redirected to the catalog page
14.1 Click on hamburger icon at the top left Menu gets opened
14.2 Click on "About" User is redirected to the about page
14.3 Click on "Go to the Sauce Labs website." and verify the user is redirected to the Sauce Labs website User is redirected to the Sauce Labs website
MDA-15 Reset app state User should have accessed to MyDemoApp Launch MyDemoApp User is redirected to the catalog page
15.1 Click on hamburger icon at the top left Menu gets opened
15.2 Click on "Reset App State" Modal gets opened
15.3 Click on "Reset App" option App State modal gets opened
15.4 Click on "OK" button App State modal gets closed
MDA-16 Cancel the reset of the app state User should have accessed to MyDemoApp Launch MyDemoApp User is redirected to the catalog page
16.1 Click on hamburger icon at the top left Menu gets opened
16.2 Click on "Reset App State" Modal gets opened
16.3 Click on "CANCEL" button Modal gets closed
MDA-17 Login with a valid account User should have accessed to MyDemoApp Launch MyDemoApp User is redirected to the catalog page
17.1 Click on hamburger icon at the top left Menu gets opened
17.2 Click on "Log In" User is redirected to the login page
17.3 bob@example.com Enter {Username} as username Username field gets filled
17.4 10203040 Enter {Password} as password Password gets filled
17.5 Click on "Login" button User is redirected to the catalog page
MDA-18 Login with a locked out account User should have accessed to MyDemoApp Launch MyDemoApp User is redirected to the catalog page
18.1 Click on hamburger icon at the top left Menu gets opened
18.2 Click on "Log In" User is redirected to the login page
18.3 alice@example.com Enter {Username} as username Username field gets filled
18.4 10203040 Enter {Password} as password Password gets filled
18.5 Click on "Login" button Error message says "Sorry, this user has been locked out"
MDA-19 Verify error message when username is not provided User should have accessed to MyDemoApp Launch MyDemoApp User is redirected to the catalog page
19.1 Click on hamburger icon at the top left Menu gets opened
19.2 Click on "Log In" User is redirected to the login page
19.4 10203040 Enter {Password} as password Password gets filled
19.5 Click on "Login" button Error message below username says "Username is required"
MDA-20 Verify error message when password is not provided User should have accessed to MyDemoApp Launch MyDemoApp User is redirected to the catalog page
20.1 Click on hamburger icon at the top left Menu gets opened
20.2 Click on "Log In" User is redirected to the login page
20.3 bob@example.com Enter {Username} as username Username field gets filled
20.4 Click on "Login" button Error message below password says "Password is required"
MDA-21 Log out User should have accessed to MyDemoApp Launch MyDemoApp User is redirected to the catalog page
21.1 Click on hamburger icon at the top left Menu gets opened
21.2 Click on "Log Out" Log Out modal gets opened
21.3 Click on "Log Out" in modal Logged out modal gets opened
MDA-22 Verify list of devices in EU-DC User should have accessed to MyDemoApp Launch MyDemoApp User is redirected to the catalog page
22.1 Click on hamburger icon at the top left Menu gets opened
22.2 Click on "Api Calls" User is redirected to the Api Calls page
22.3 Click on "EU-DC" tab and verify the HTTP response is successful HTTP response is successful
MDA-23 Verify list of devices in US-DC User should have accessed to MyDemoApp Launch MyDemoApp User is redirected to the catalog page
23.1 Click on hamburger icon at the top left Menu gets opened
23.2 Click on "Api Calls" User is redirected to the Api Calls page
23.3 Click on "US-DC" tab and verify the HTTP response is successful HTTP response is successful
MDA-24 Verify 401 unauthorized error response User should have accessed to MyDemoApp Launch MyDemoApp User is redirected to the catalog page
24.1 Click on hamburger icon at the top left Menu gets opened
24.2 Click on "Api Calls" User is redirected to the Api Calls page
24.3 Click on "401" tab and verify the HTTP response is unauthorized HTTP response is unathorized
MDA-25 Verify 404 not found error response User should have accessed to MyDemoApp Launch MyDemoApp User is redirected to the catalog page
25.1 Click on hamburger icon at the top left Menu gets opened

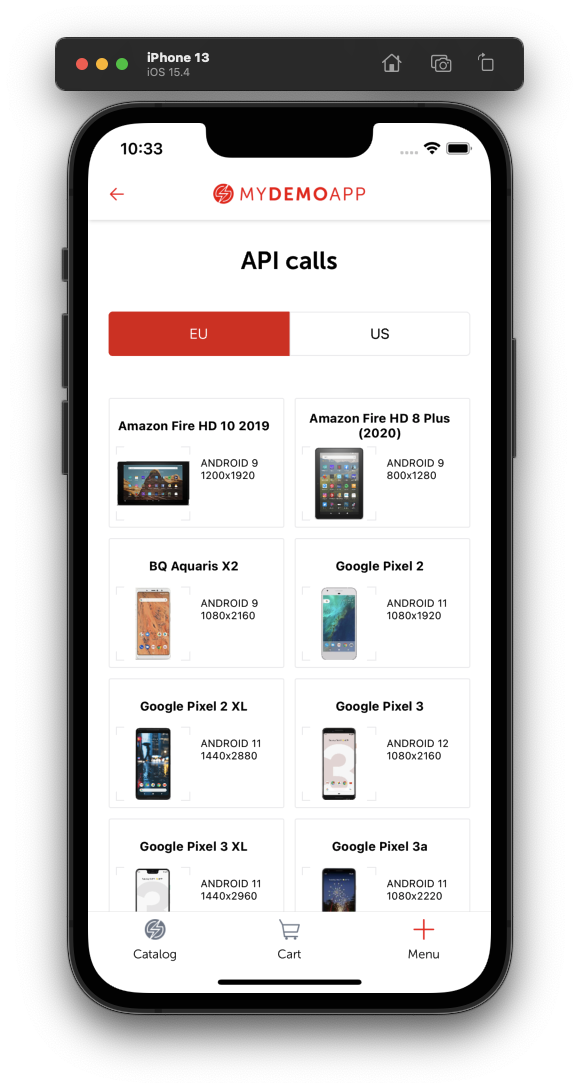

25.2 Click on "Api Calls" User is redirected to the Api Calls page
25.3 Click on "404" tab and verify the HTTP response is not found HTTP response is not found

Page Object Model

Page Object Model

Page Object Model, also known as POM, is a design pattern in Selenium that creates an object repository for storing all web elements. It helps reduce code duplication and improves test case maintenance. In Page Object Model, consider each web page of an application as a class file. Each class file will contain only corresponding web page elements. Using these elements, testers can perform operations on the website under test.

UML
Page Object Model

Test Execution

Test Execution
The project was executed using Eclipse IDE as Java development environment and Android Studio as Android device emulator.

Test Results

Test Results
The pass rate for the 25 test cases was 96%, with 4% being a failed test case. Run time was 5 minutes and 57 seconds.
Results
Test results
See test results ⧉

Defects

Defects
  • Summary: The sum of an item added to the cart several times is incorrect.
  • Description: Increasing the number of items to purchase for an item and adding it to the cart several times causes the total sum to be incorrect.
  • Steps:
    • Launch MyDemoApp
    • Click on "Sauce Labs Backpack"
    • Increase the count to 3
    • Click on "Add to Cart button" 4 times
    • Click on cart icon at the upper right
    • Verify that the total sum is $359.88 as the individual item price is $29.99 multiplied by the total number of items which is 12.
  • Actual result: The total sum shows up $179.94
  • Expected result: The total sum should show up $359.88
  • Environment: Android emulator device
  • Attachments:
My Demo App bug

Tools

Tools

Java

Selenium

Eclipse

Page Object Model

Cucumber

Gerkhin

Behavior Driven Development
